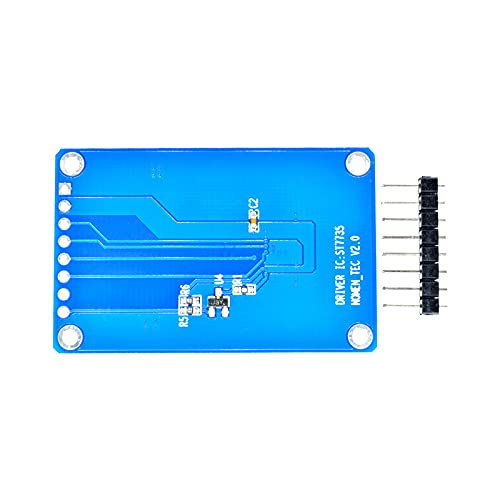

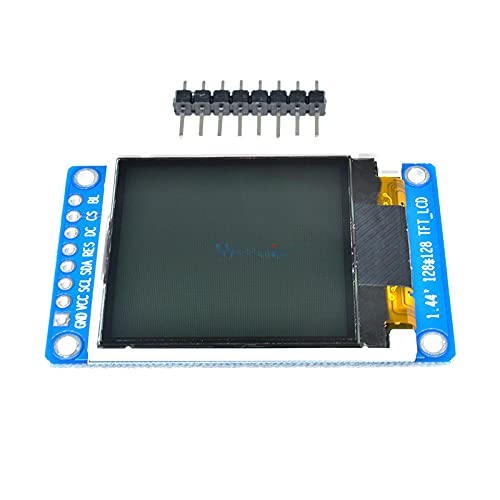

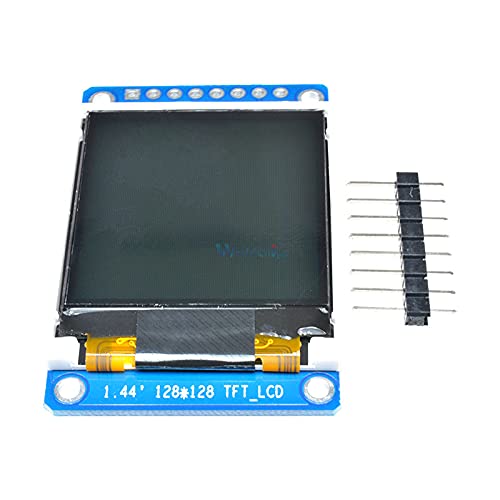

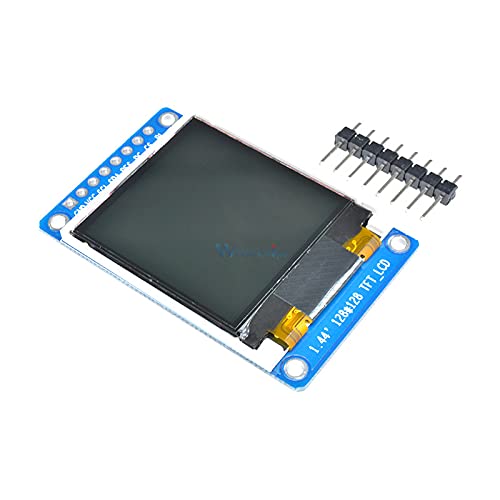

1.44" inch Serial 128x128 ST7735S Full Color TFT LCD Display Module 8 Pin SPI Serial Interface Replace OLED 3.3V Power Input
Product details
| Management number | 247502893 | Release Date | 2026/08/16 | List Price | US$4.34 | Model Number | 247502893 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

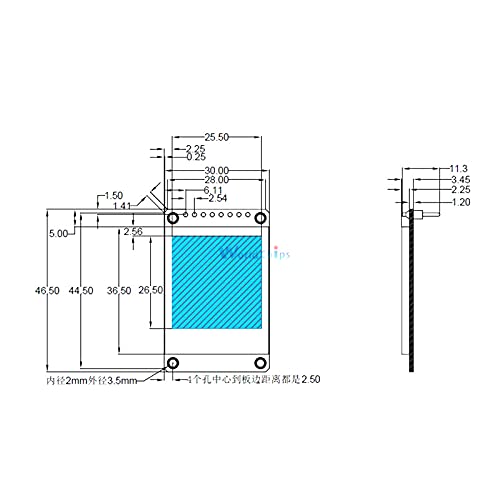

1.Features SIZE 1.44 inch Display Mode a-TFT Display Format 128RGB*128 dots matrix Input Data SPI interface Drive IC ST7735S Dimensional outline 30(W)*46.50(H)*3.45+/-0.1(T)mm Resolution 128RGB*128 Dots LCD Active area 25.50 (W)*26.50 (H) Pixel size 0.20(W)*0.20(H)mm Viewing Direction 12 o’clock Operating Temperature -20～70°C 2.Pin Descriptions： PIN No Symbol Description 1 GND Ground 2 VCC Power 3.3V 3 SCL Serial clock pin. 4 SDA Serial data input 5 RES LCM Reset pin This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation. 6 DC Data/Command Control 7 CS Chip Select 8 BLK Backlight control pin 3. Connected to the microcontroller
- 1.44" inch Serial 128x128 ST7735S Full Color TFT LCD Display Module 8 Pin SPI Serial Interface Replace OLED 3.3V Power Input
| ASIN | B0982DTHZV |
|---|---|
| Manufacturer | Midzoo |
